HackRF One 1MHz to 6GHz Software Defined Radio Platform Development Board RTL SDR demo board kit dongle receiver Ham Radio

HackRF 1 RTL SDR Software Defined Radio Board 1MHz to 6GHz Open Source with Acrylic Shell

Specifications:
– 1 MHz to 6 GHz operating frequency
– Half-duplex transceiver
– Up to 20 million samples per second
– 8-bit quadrature samples (8-bit I and 8-bit Q)
– Compatible with GNU Radio, SDR#, and more
– Software-configurable RX and TX gain and baseband filter
– Software-controlled antenna port power (50 mA at 3.3 V)
– SMA female antenna connector
– SMA female clock input and output for synchronization
– Convenient buttons for programming
– Internal pin headers for expansion
– Hi-Speed USB 2.0
– USB-powered
– Open source hardware

Parameters:
– Frequency band: 1MHz-6Ghz
– Data bandwidth: 20MHz
– Sampling accuracy ( ADC/DAC) : 8BIT
– Sampling speed ( ADC/DAC): 20Mbps
– Interface: USB2.0
– Open source
– Maximum transmitting power: 10dbm
– 64QAM transmitting EVM: 1.5%
– Complex sampling bandwidth: 20Mhz

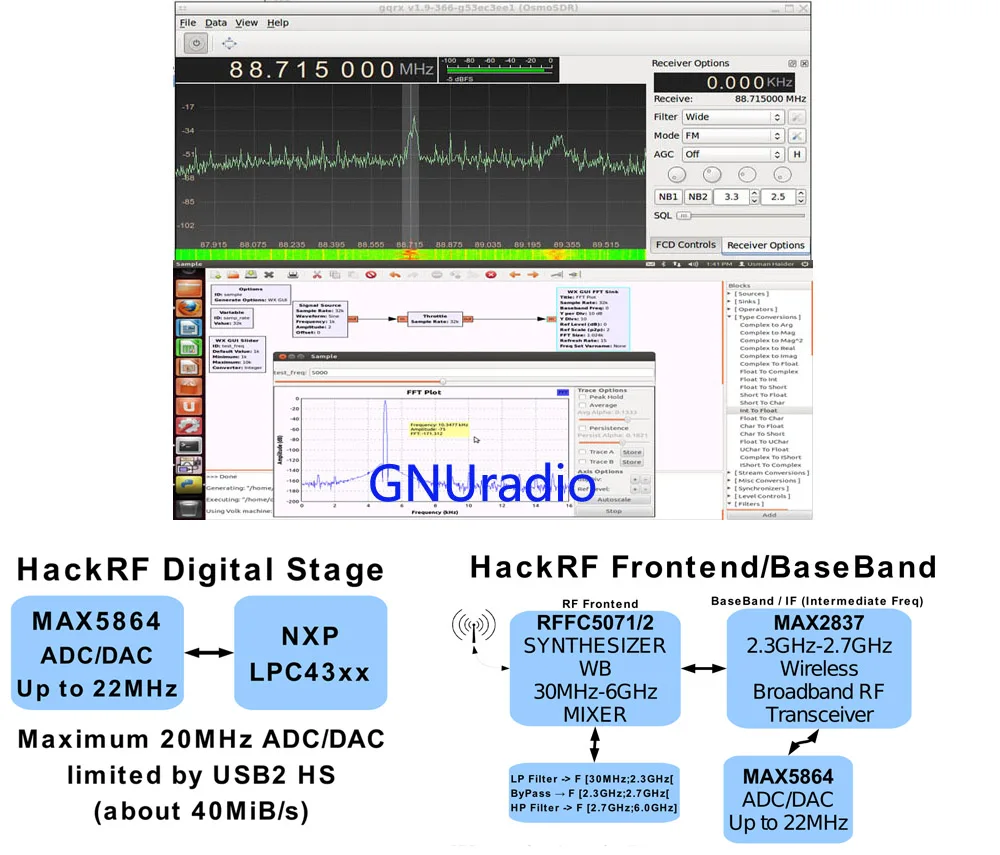

Hardware:
– Mixer RFFC5072: 80MHz-4200MHz
– Wireless bandwidth RF transceiver MAX2837: 2.3Ghz-2.7Ghz
– Processor LPC4330: Main frequency 204MHz
– Amplifier MGA-81563: 0.1-6Ghz, 3V, 14dbm

• Included in shipment is:
• HackRF One Board
• Case
•

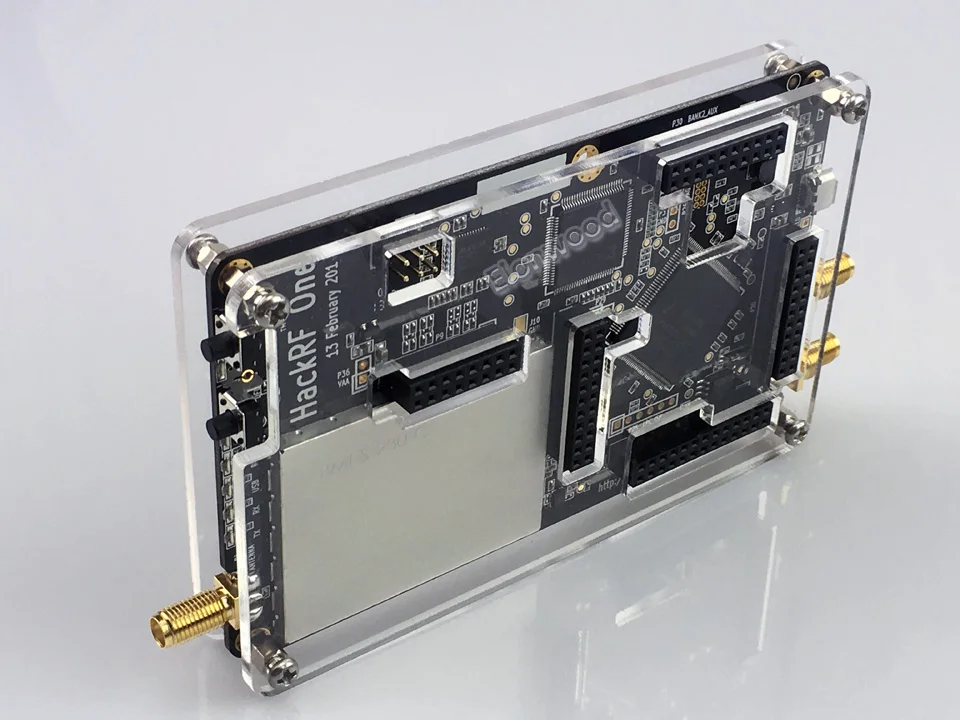

– 1 x HackRF One board with Acrylic Shell
– 1 x Antenna (40Mhz-6GHz)
– 1 x USB-Cable
– 1 x TCXO clock  0.1PPM
